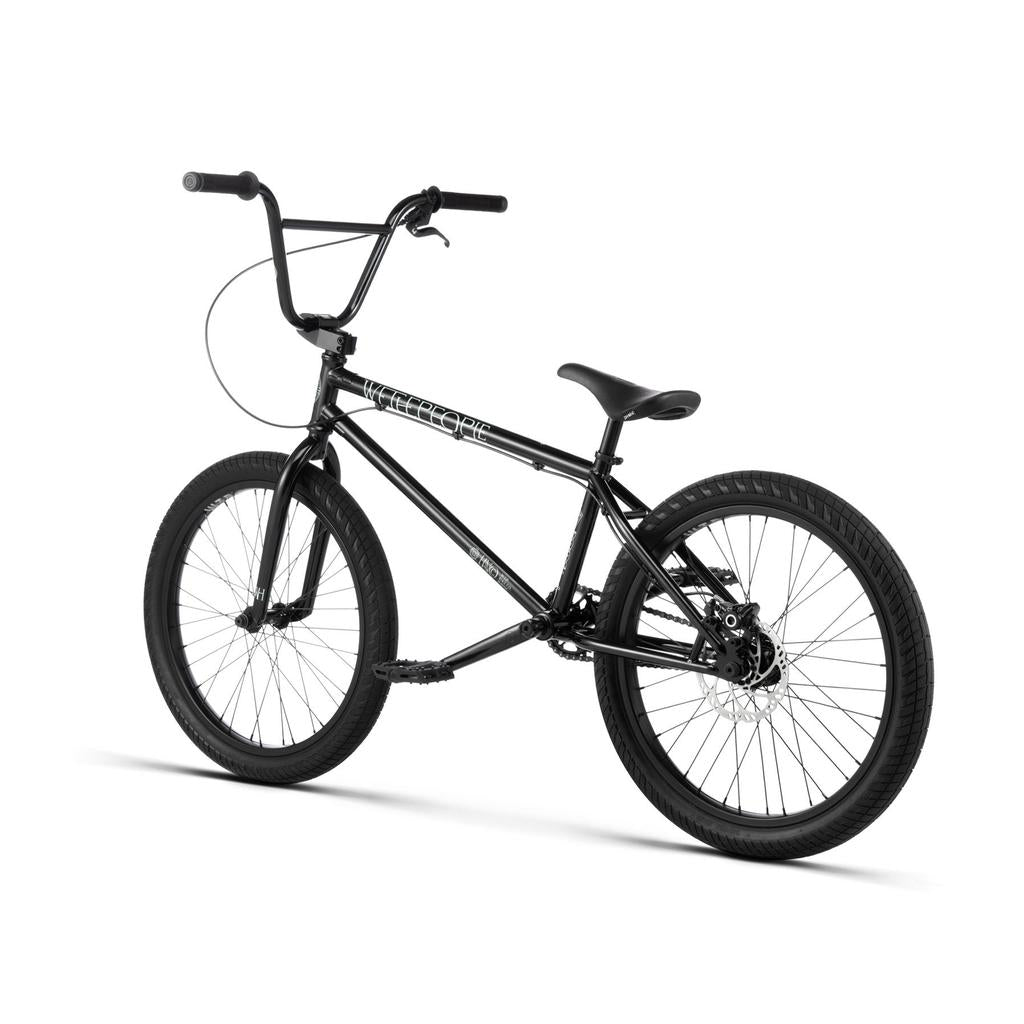

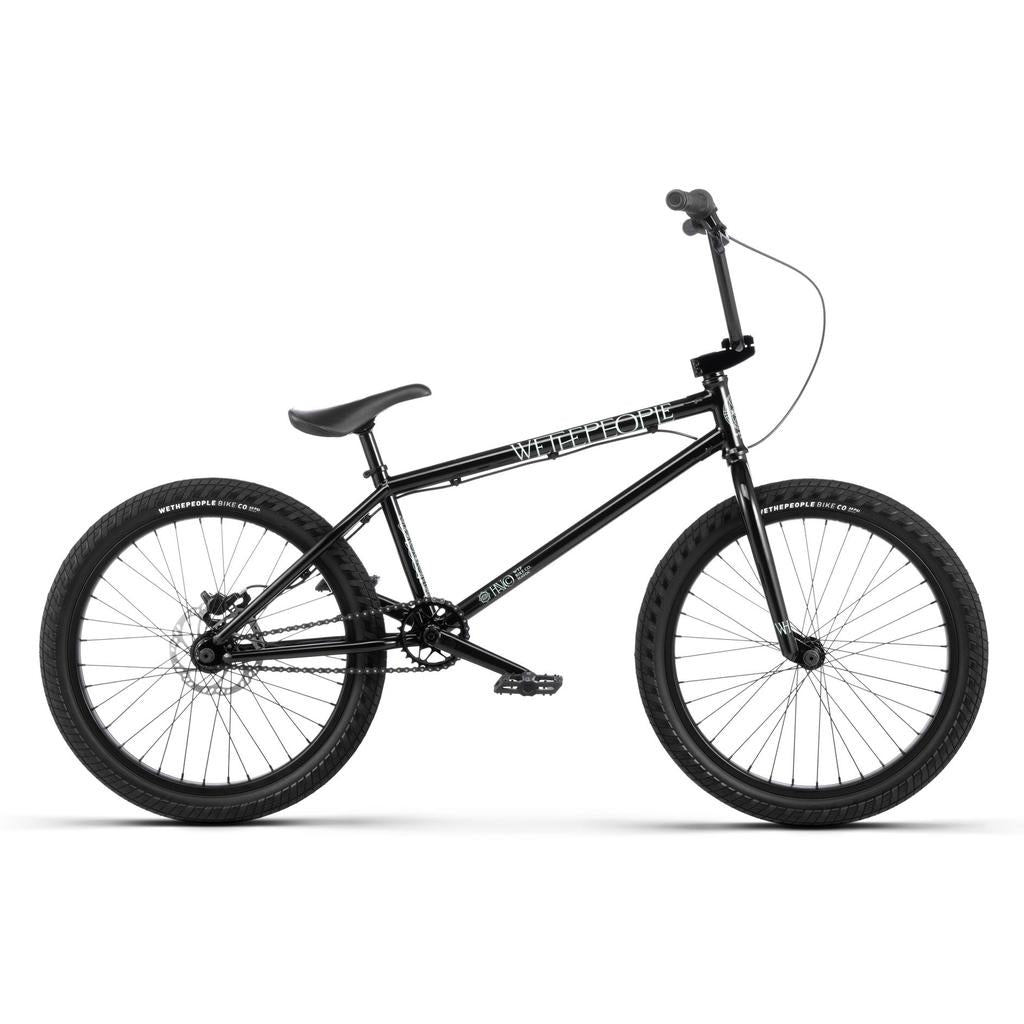

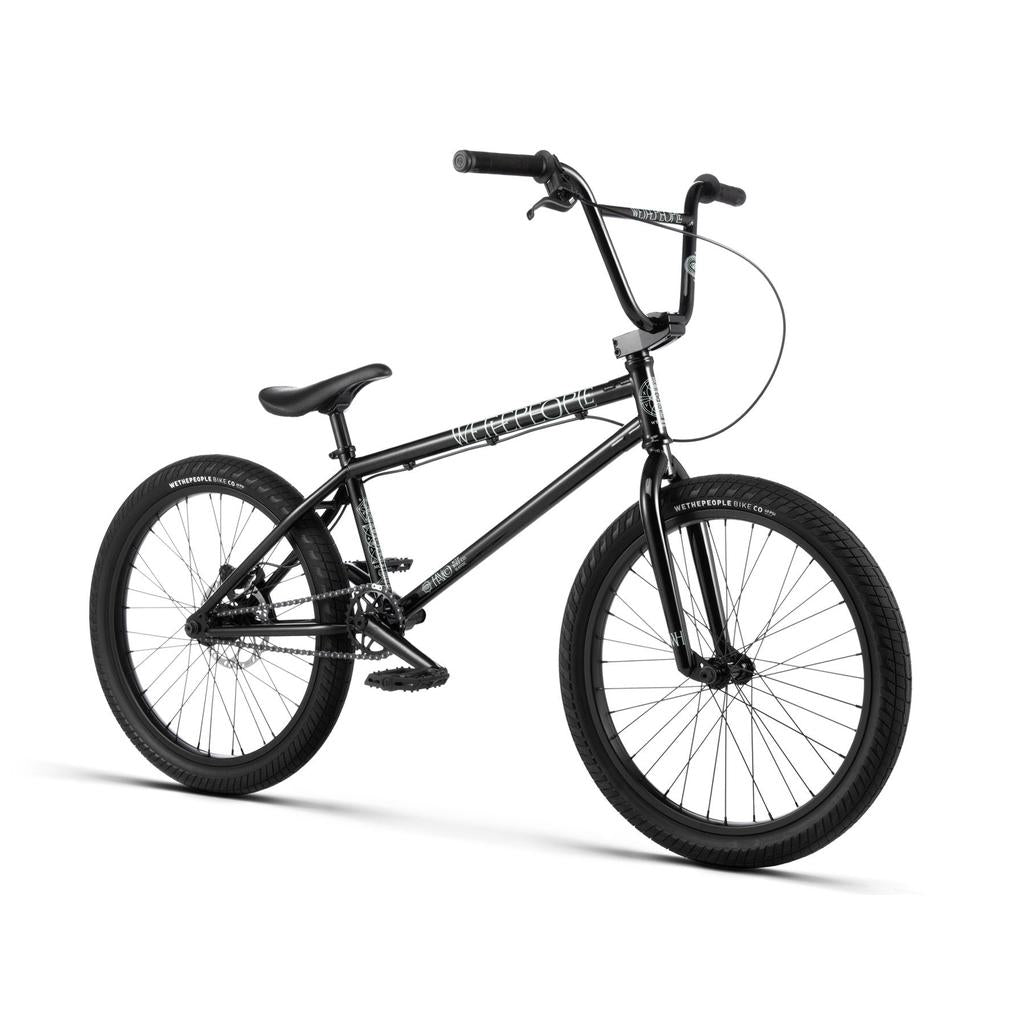

Wethepeople Havoc 22 Inch Bike
Wethepeople are always pushing what can be done with a BMX bike, and this year they have released their first-ever 22-inch disk brake-ready bike. Modelled off the popular Chaos Machine frame released in 2022, these big bikes are built with the proven Chaos geometry ready to create Havoc!
Frame - "HAVOC 22" frame, trial geometry, 4130 full CrMo, disc brake mount

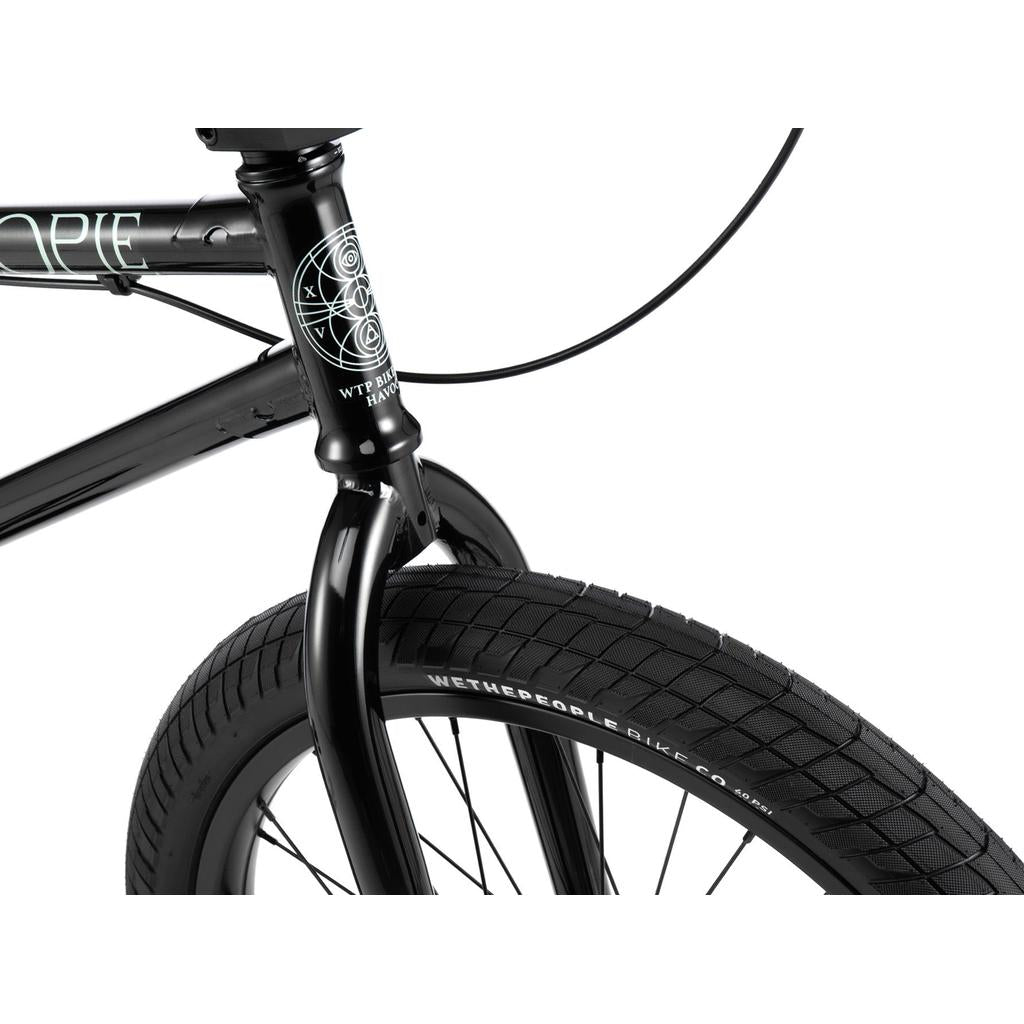

Fork - "HAVOC 22" fork, 4130 full CrMo, 32mm offset

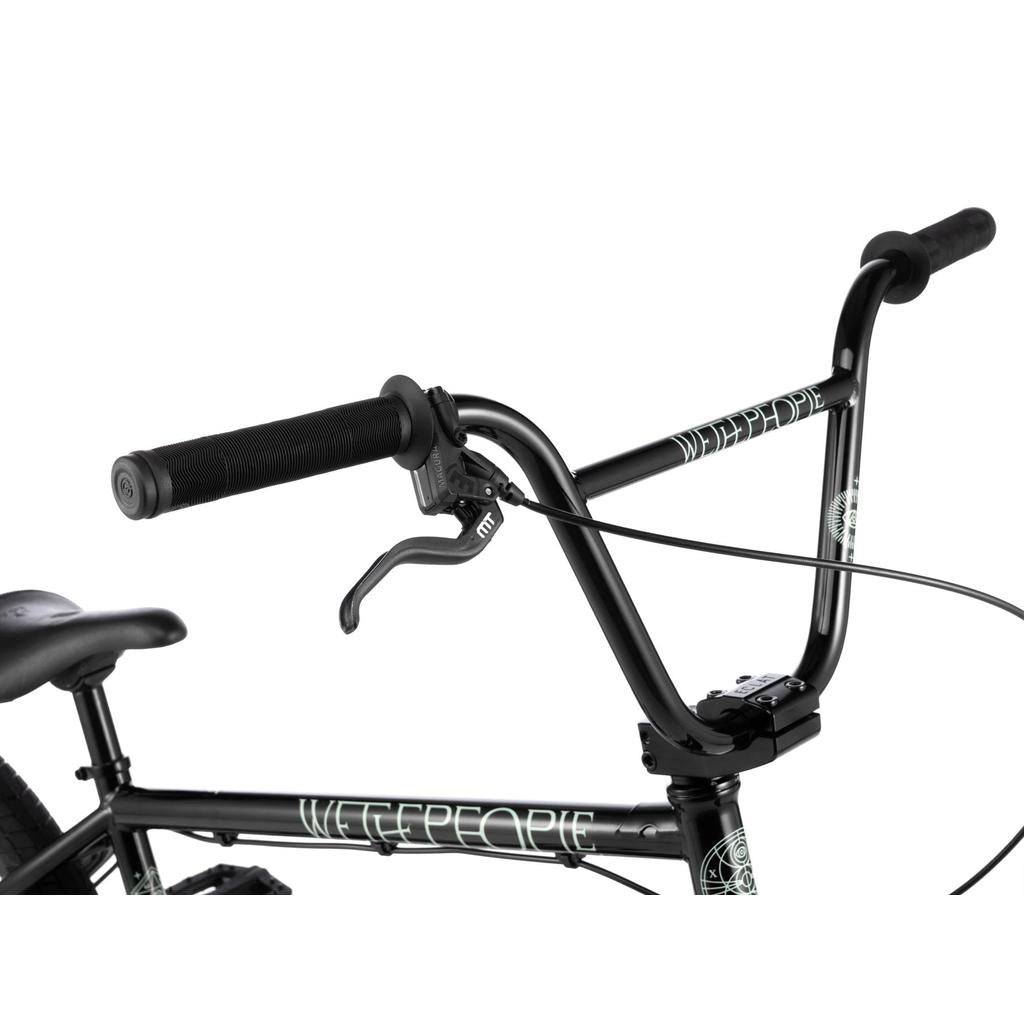

Handlebar - "HAVOC 22" bar, full 4130 CrMo
Grips - SALT "EX" grips, 155.4mm, with flange

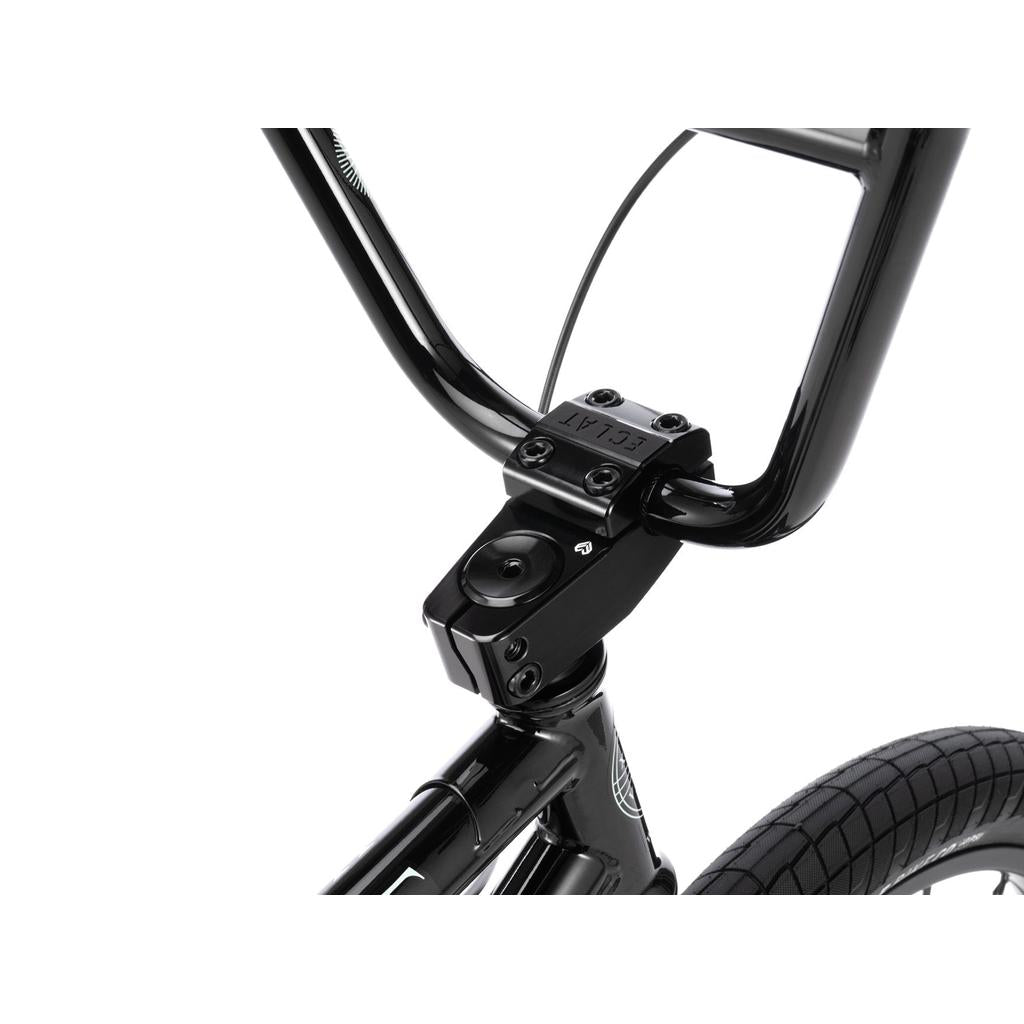

Stem - ÉCLAT "METRA" top load stem, CNC alloy, 51mm reach, 30mm rise
Headset - ÉCLAT "WAVE 6" int. headset, sealed bearing
Gyro - No holes for removable gyro tabs
Brake lever - MAGURA "MT4" hydraulic disc brake lever

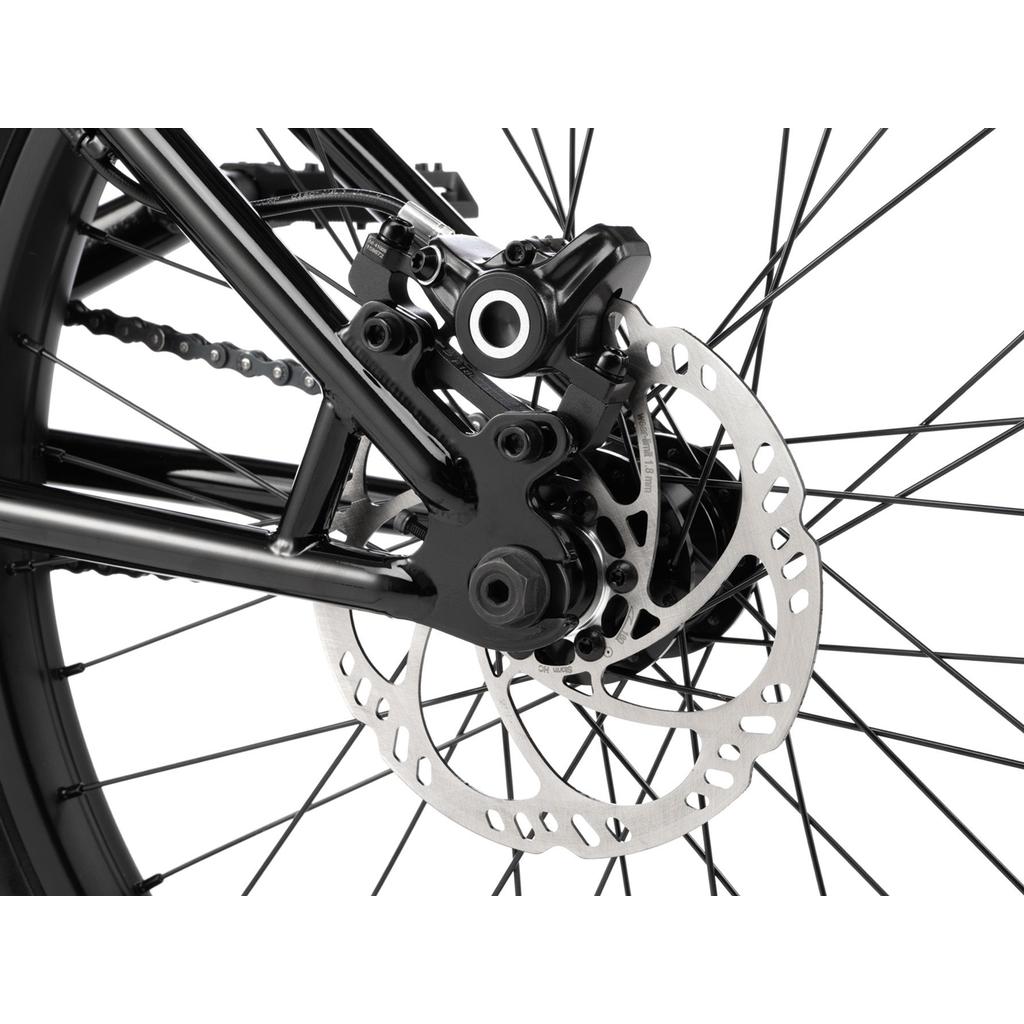

Brakes - MAGURA "MT4" hydraulic disc brake, 140mm rotor

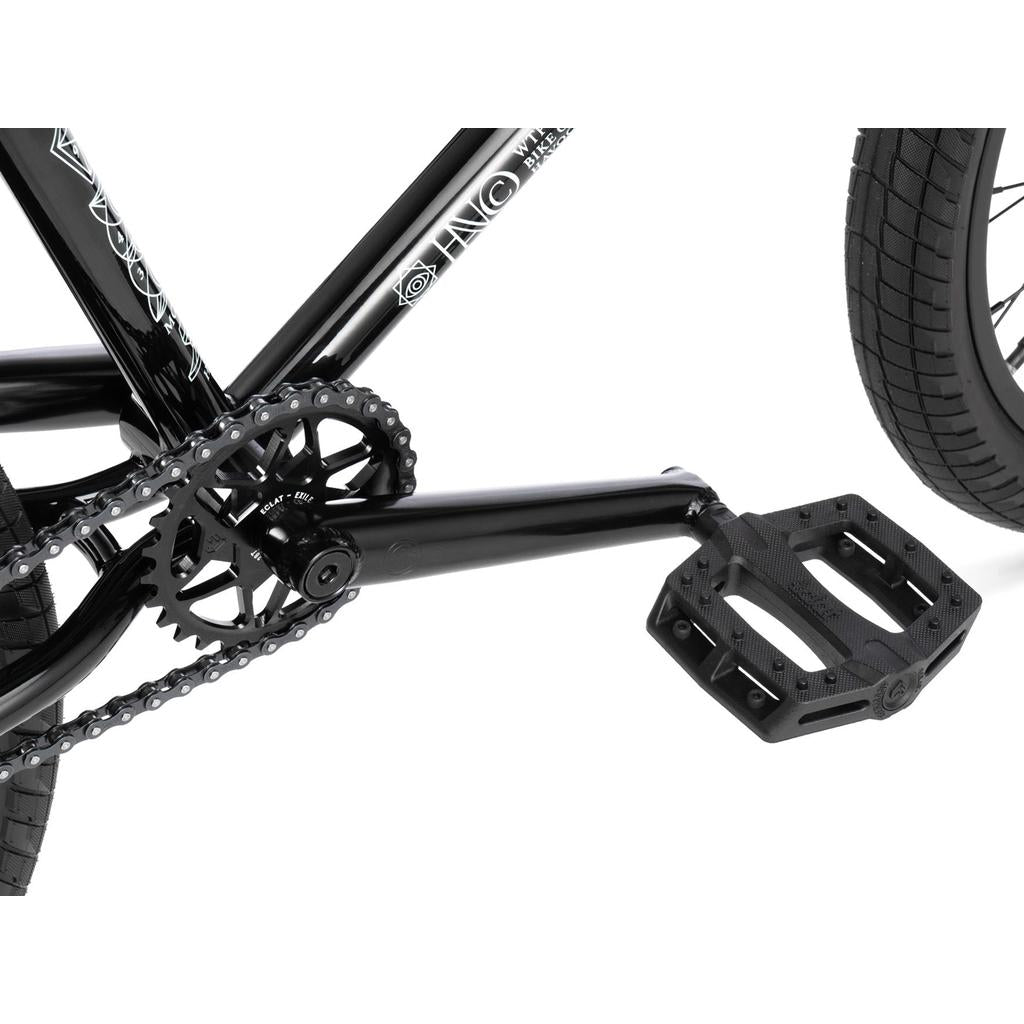

Crank - SALTPLUS "ULTRA" square profile 3pc "TSS" crank, CrMo, 170mm, 8 spline
BB - SALT "MID" BB, 19mm, press fit, sealed bearing
Pedals - ÉCLAT "CONTRA" pedals, nylon/fibreglass
Chain - WETHEPEOPLE "SUPPLY" chain
Sprocket - ÉCLAT "EXILE" sprocket, CNC, 7075-T6 alloy, 30T
Driver - 1pc cassette driver, 9T (RSD)

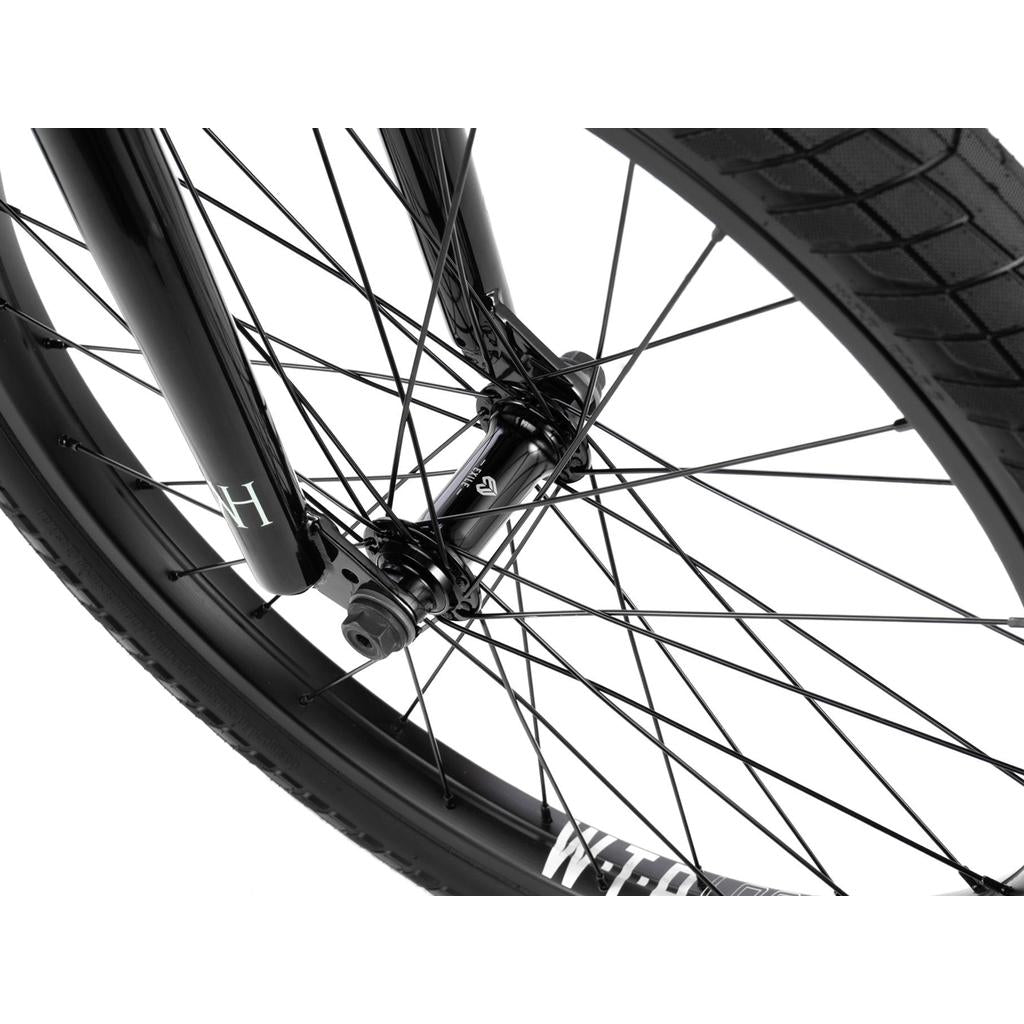

Front hub - ÉCLAT "EXILE" hub, fully sealed, 3/8"s axle, 36H

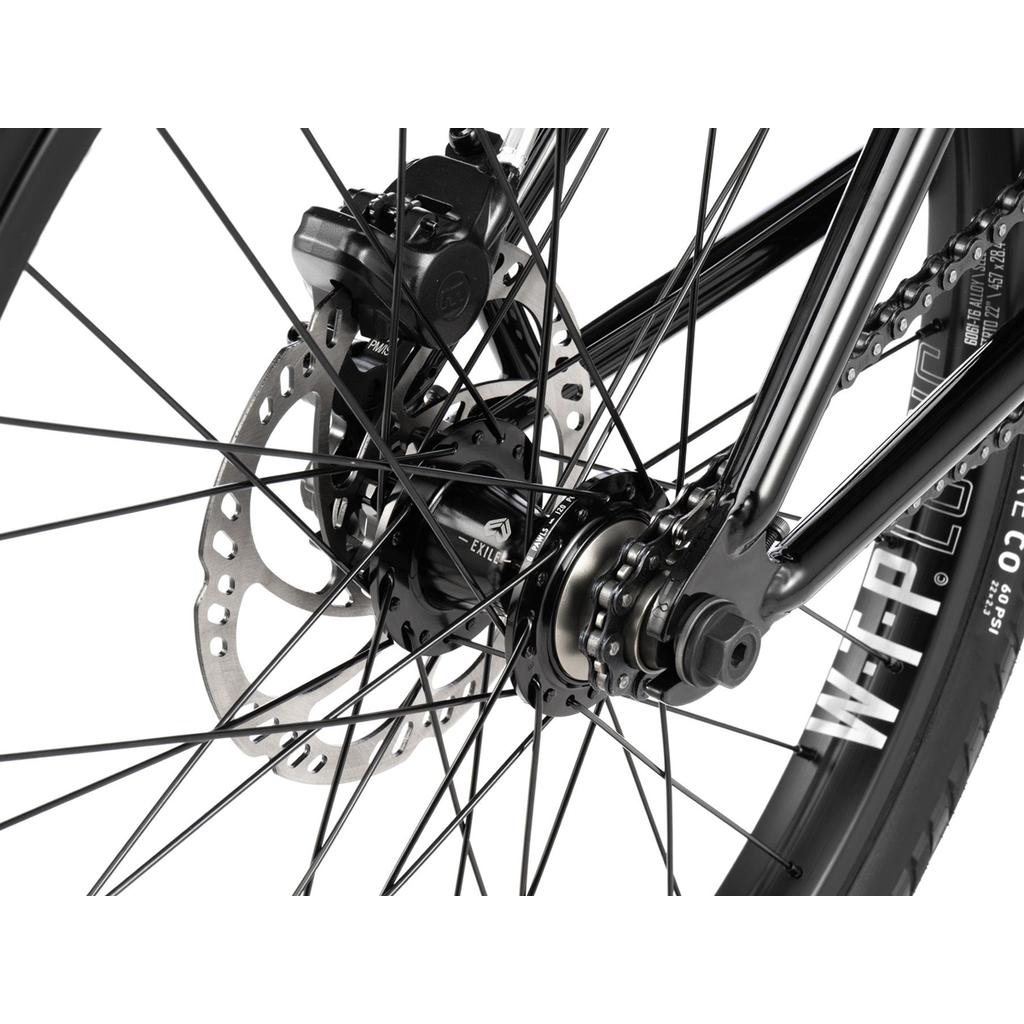

Rear hub - ÉCLAT "EXILE DISC" cassette hub, fully sealed, 9T, female axle, 36H, disc brake mount
Front rim - WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36H
Rear rim - WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36H

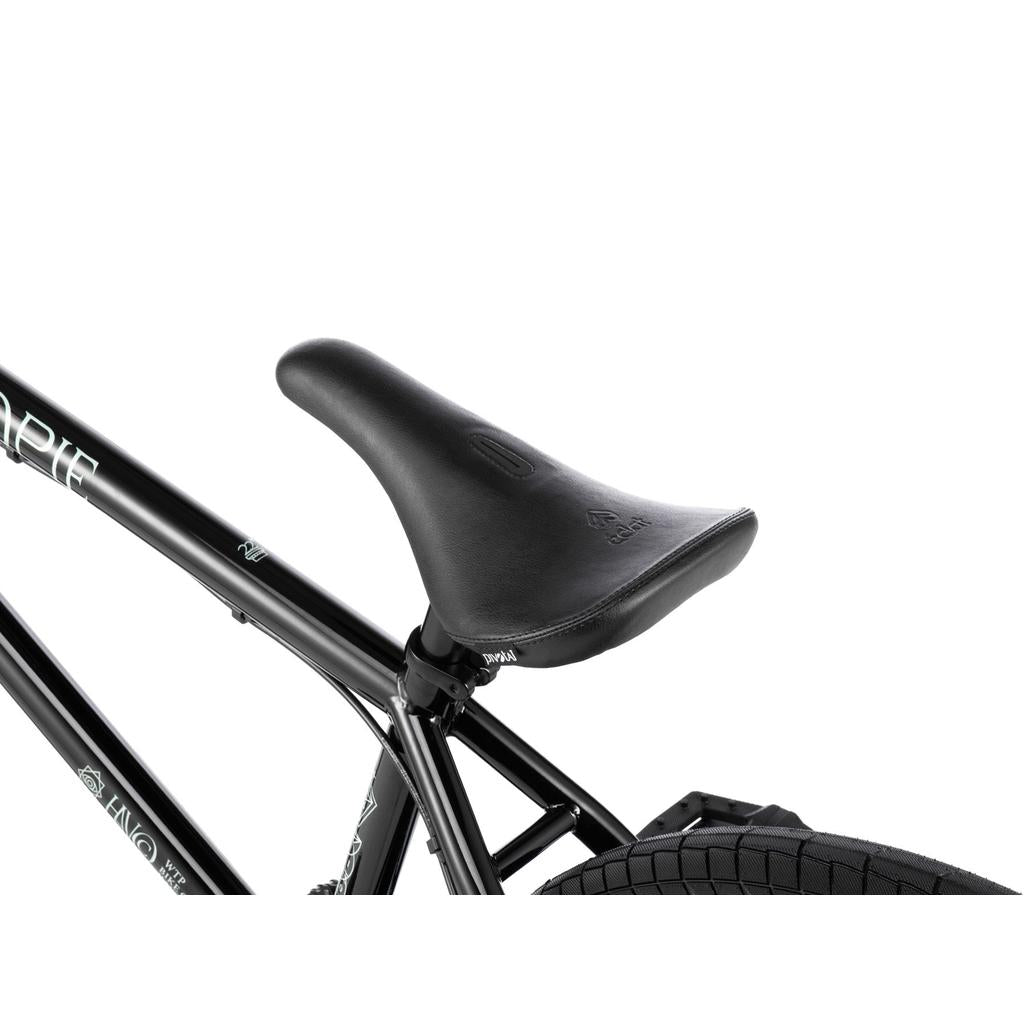

Seat - ÉCLAT "EXILE" pivotal seat, slim padded
Seat post - SALT "AM" pivotal seat post, 200mm, alloy
Seat clamp - ÉCLAT "PURE" seat clamp, forged alloy
Tyres - WETHEPEOPLE "OVERBITE" tires front & rear
Weight - TBC
Frame geometry
Top tube length – 22.25"
Chain stay length – 14.35"
Head tube angle – 74.25°
Seat tube angle – 71°
BB height – 12.25"
Standover height – 9.5"
Bar geometry
Bar rise – 9"
Bar width – 29.25"
Bar back sweep – 11°
Bar upsweep – 2.5°
