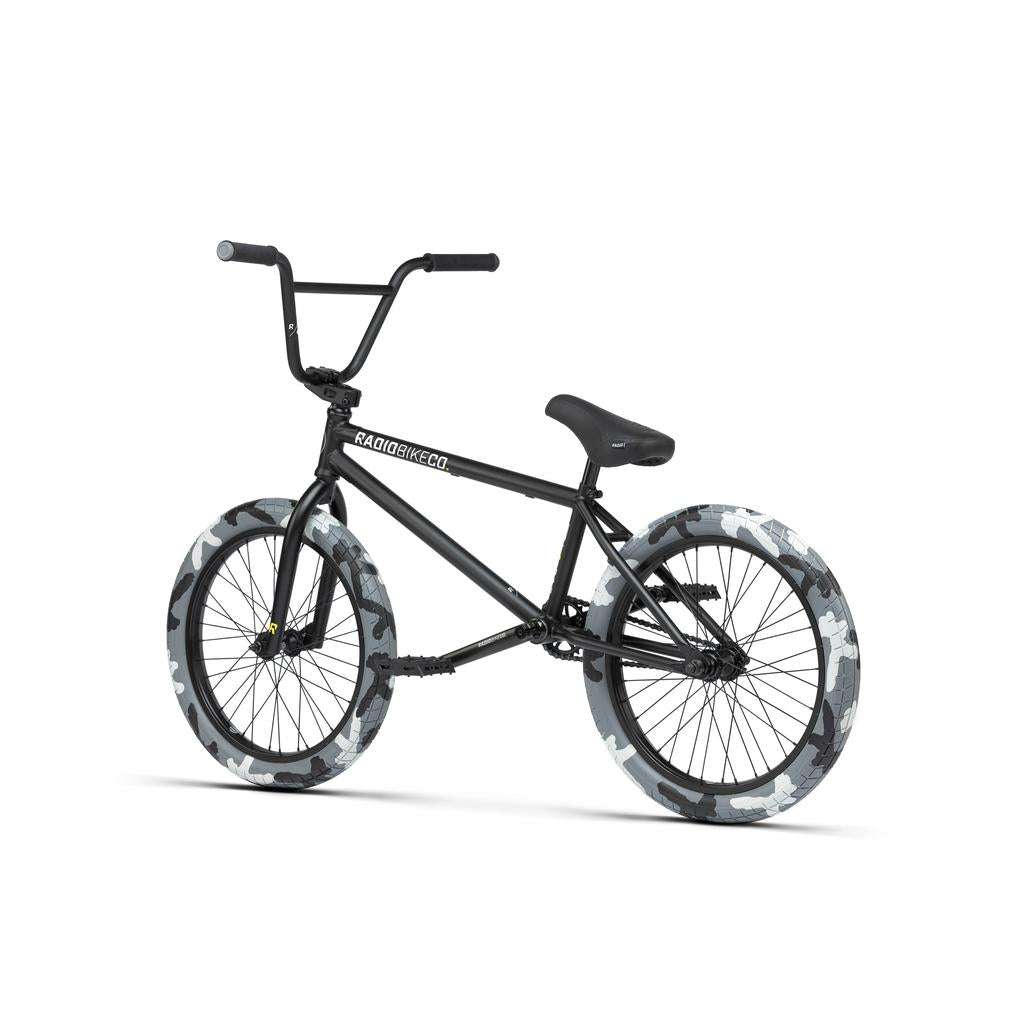

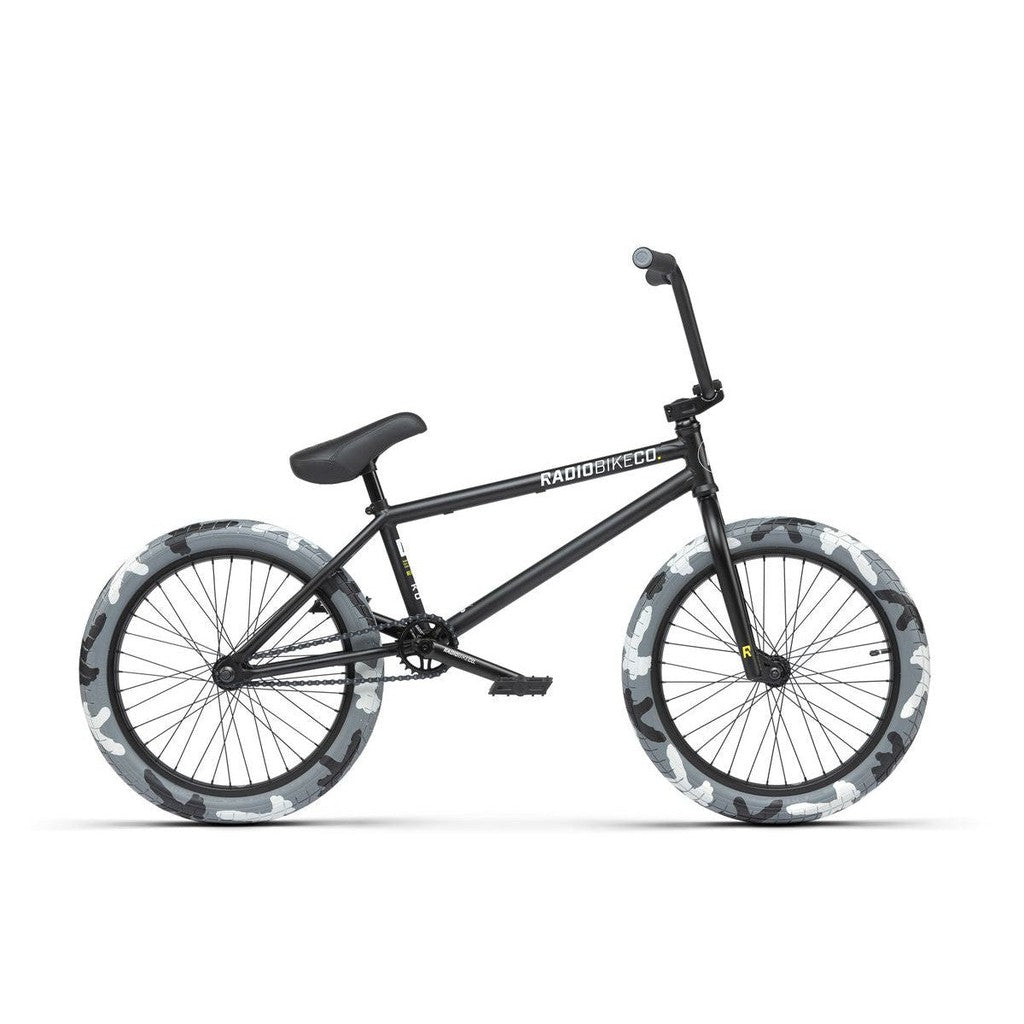

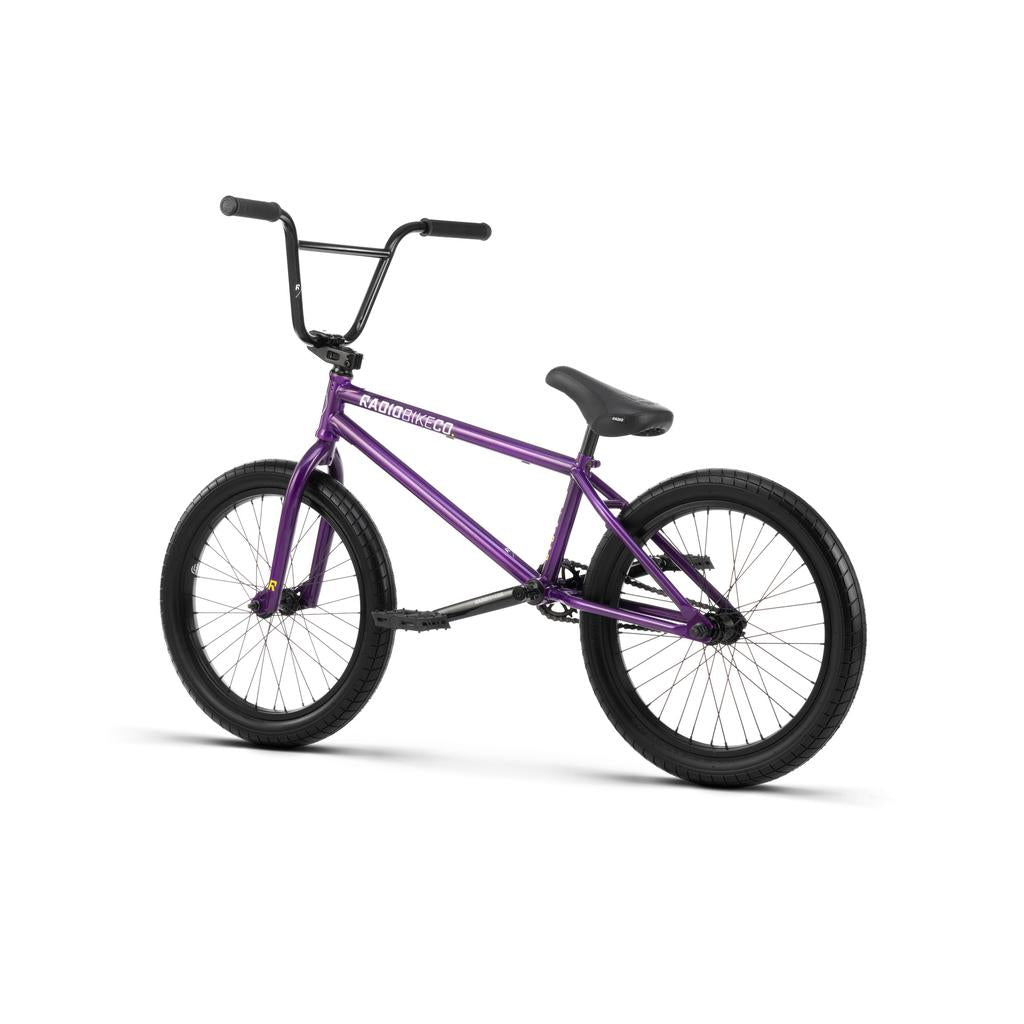

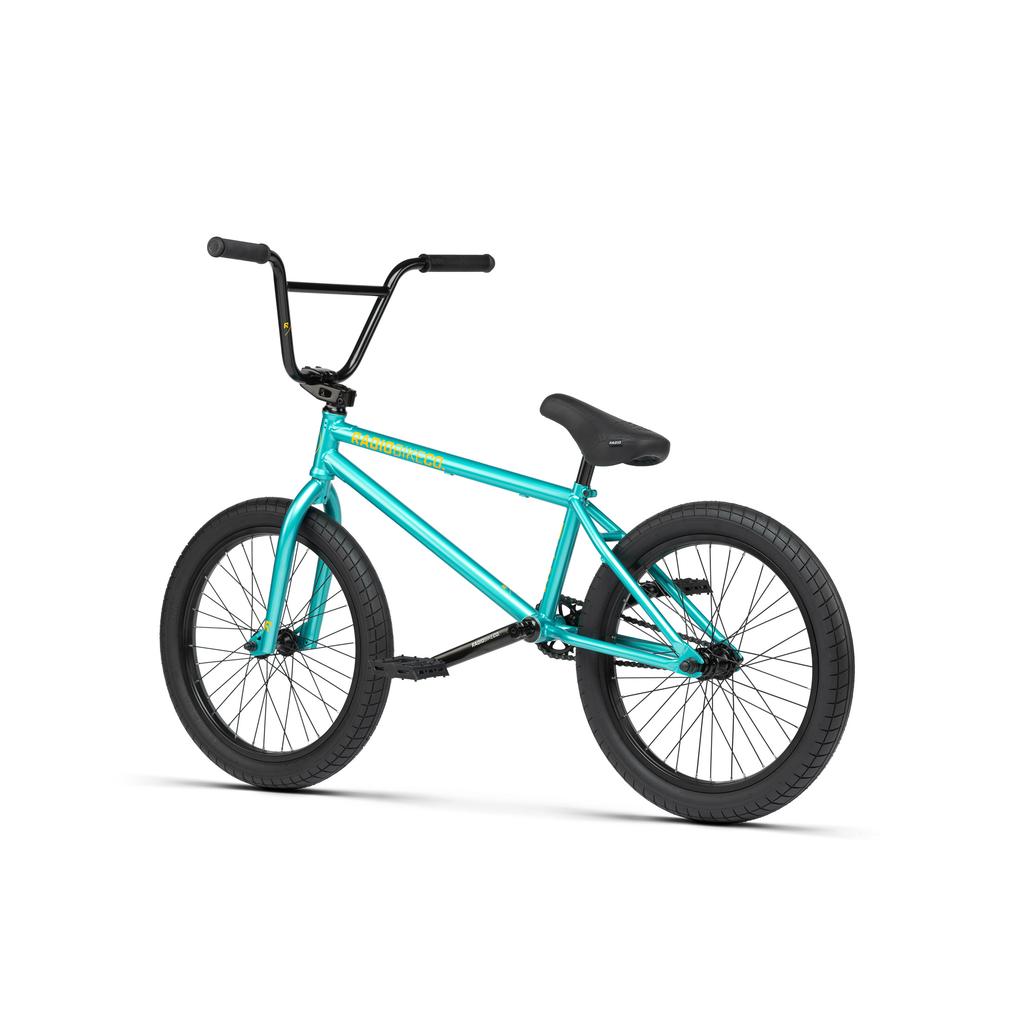

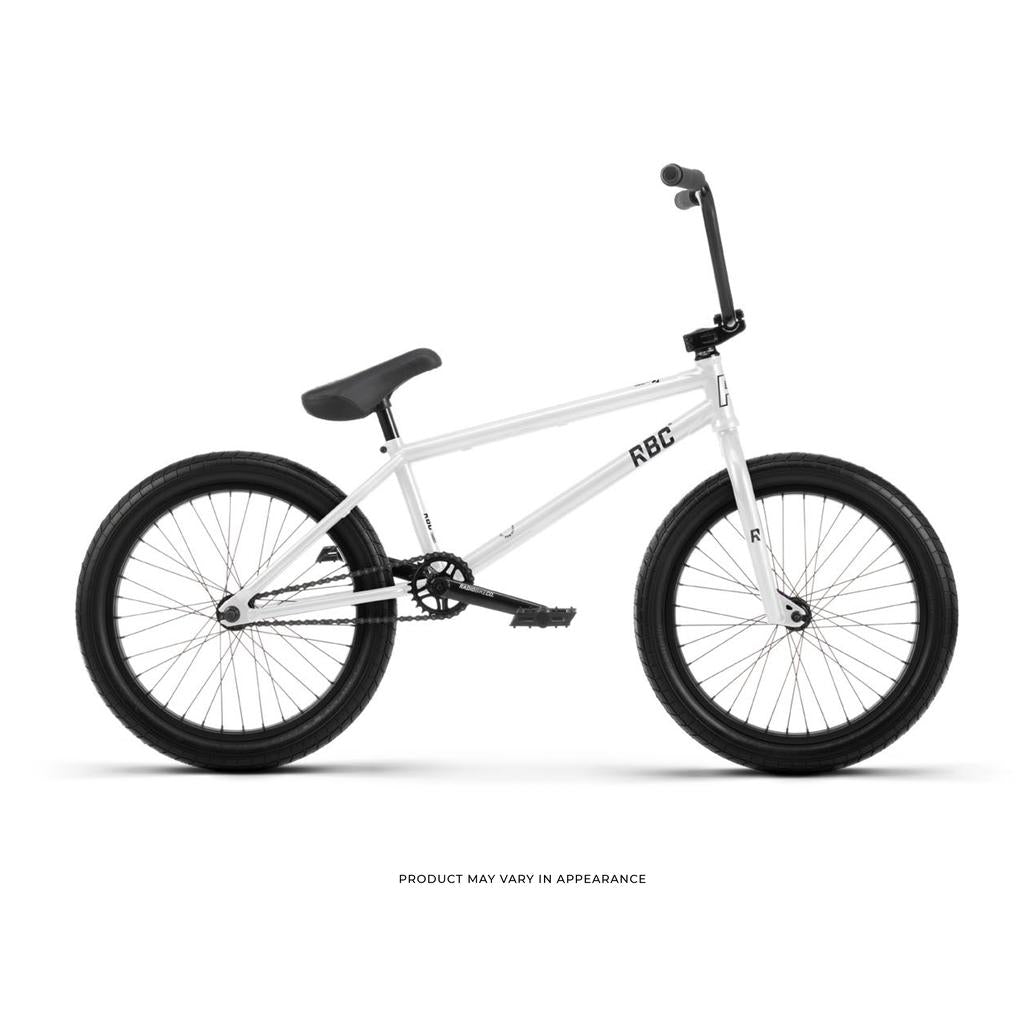

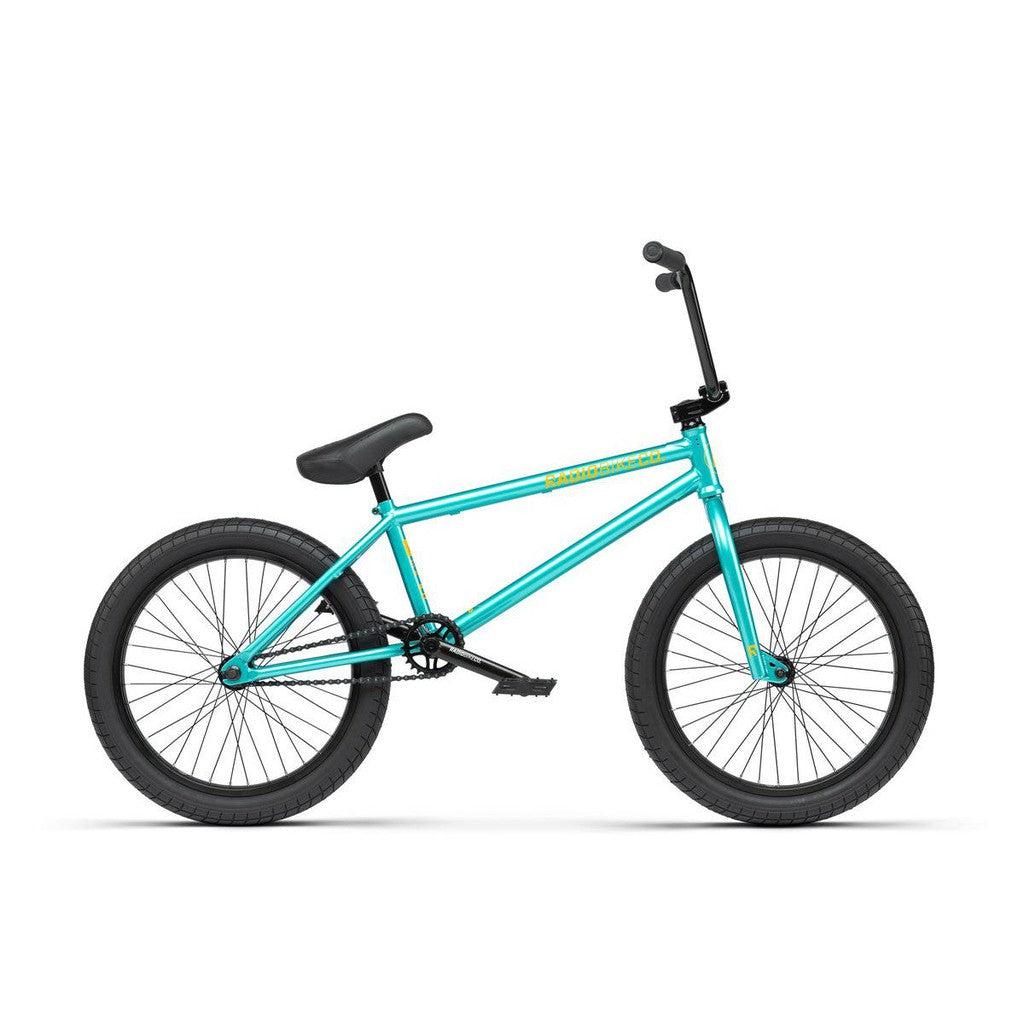

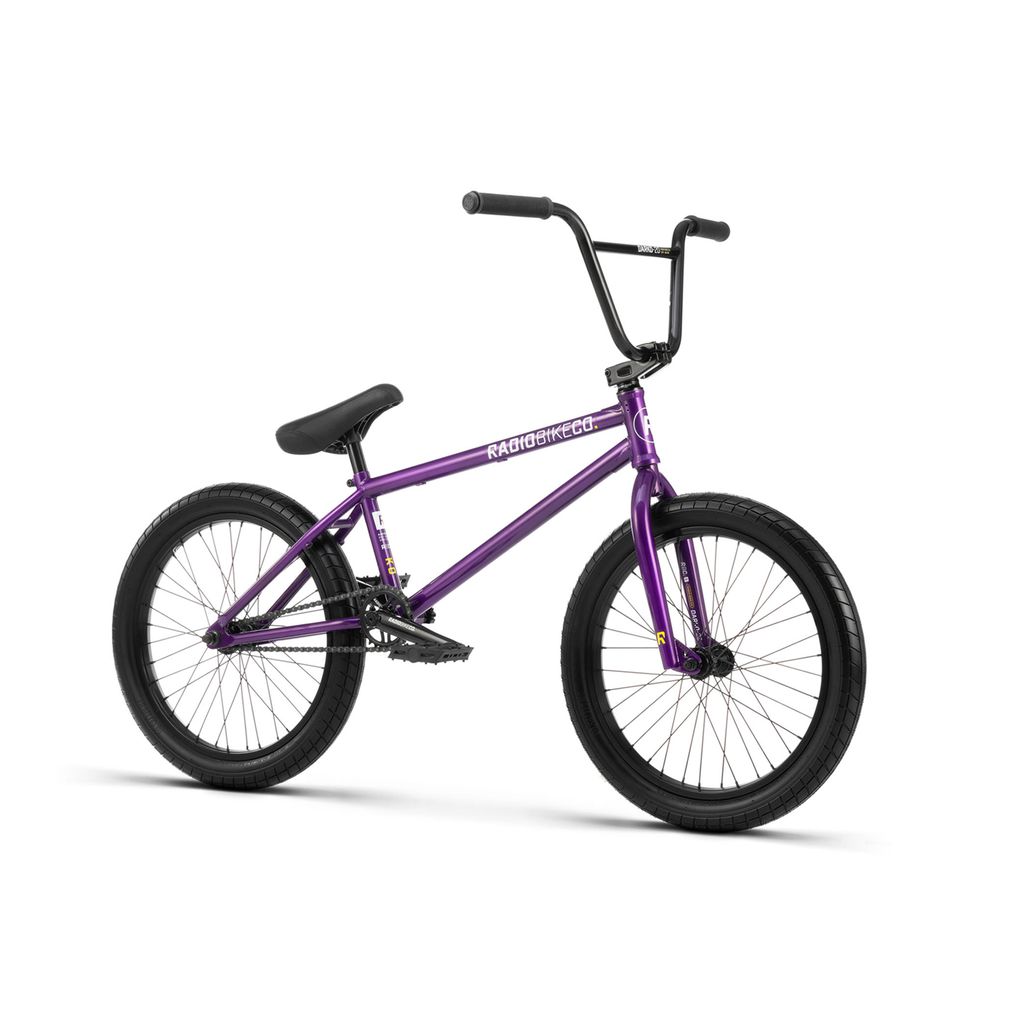

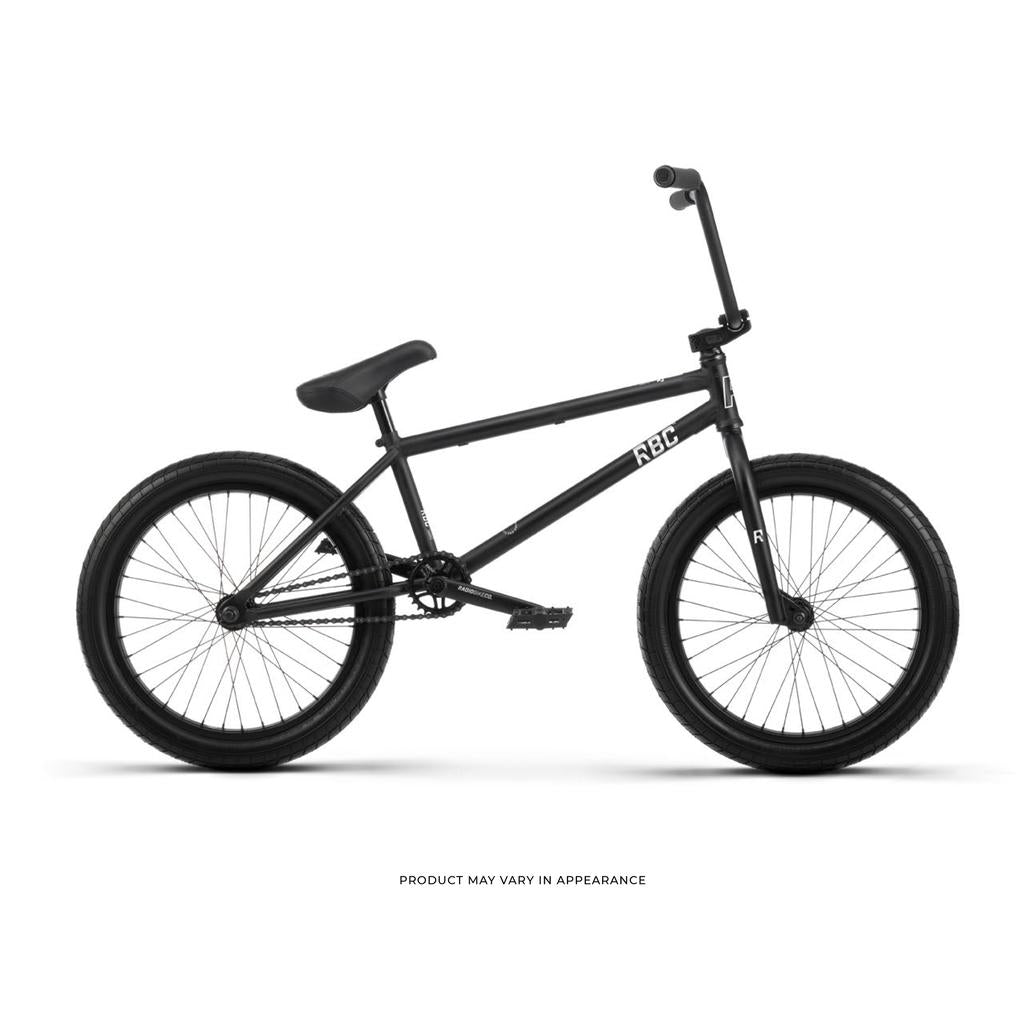

Rip the fattest skids in your street with one of these burly shred-sleds from Radio! They even threw in some Salt Burn Tyres in 2.35" because they know whats up! Built tough with a Chromoly Top Tube and Down Tube in the frame, and Chromoly Three Piece Cranks, you can feel calm and in control on this rig! A Salt Pro Headset gets those bars spinning at blistering speeds and the Radio Pro Pedals will keep your Crocs glued in place. This is a beast of a bike so get out there and start taming it!
FRAME - RADIO "DARKO" frame, crmo top tube & down tube, 1020 hi-ten, removable brake mounts & guides
FORK - RADIO "AM" fork, 1020 hi-ten, crmo steerer, tapered legs

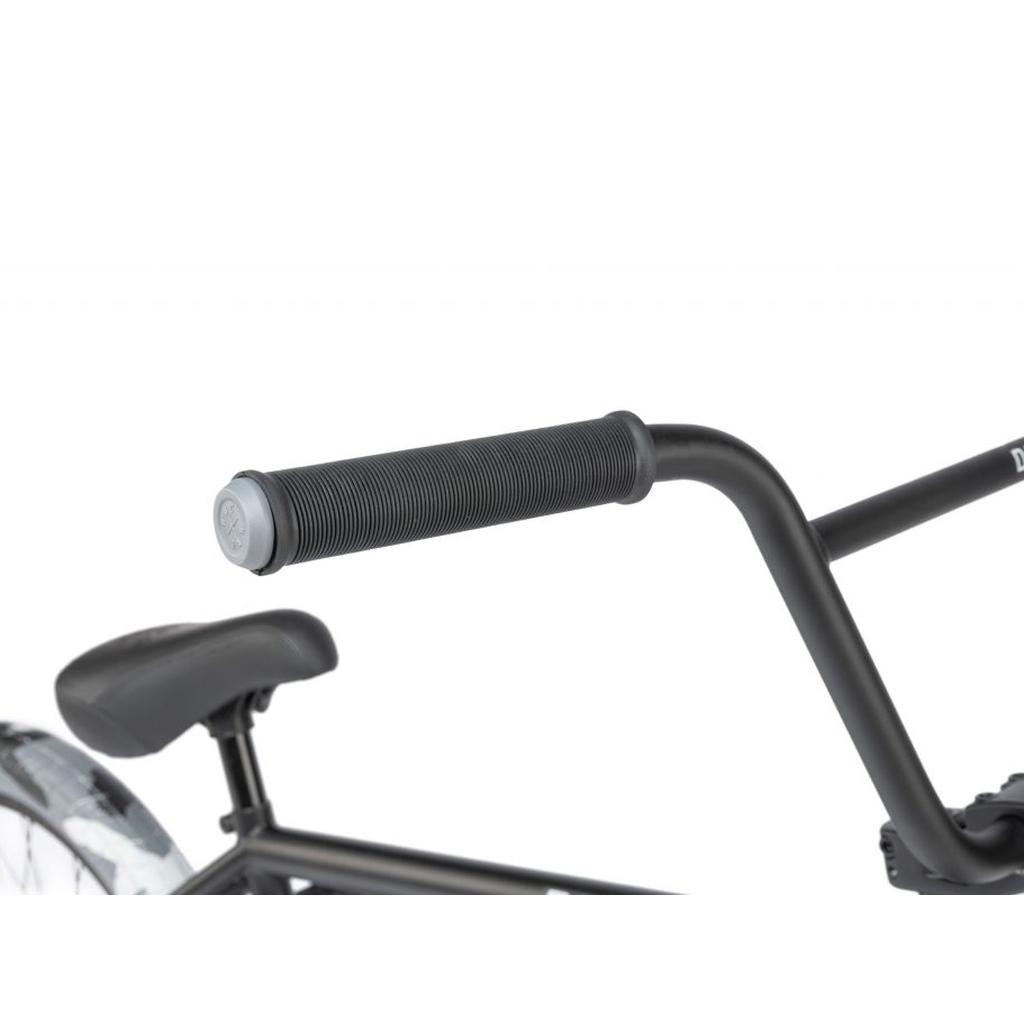

BARS - RADIO "DARKO" bar, 1020 hi-ten
GRIPS - RADIO "AM XL" grips, 160mm

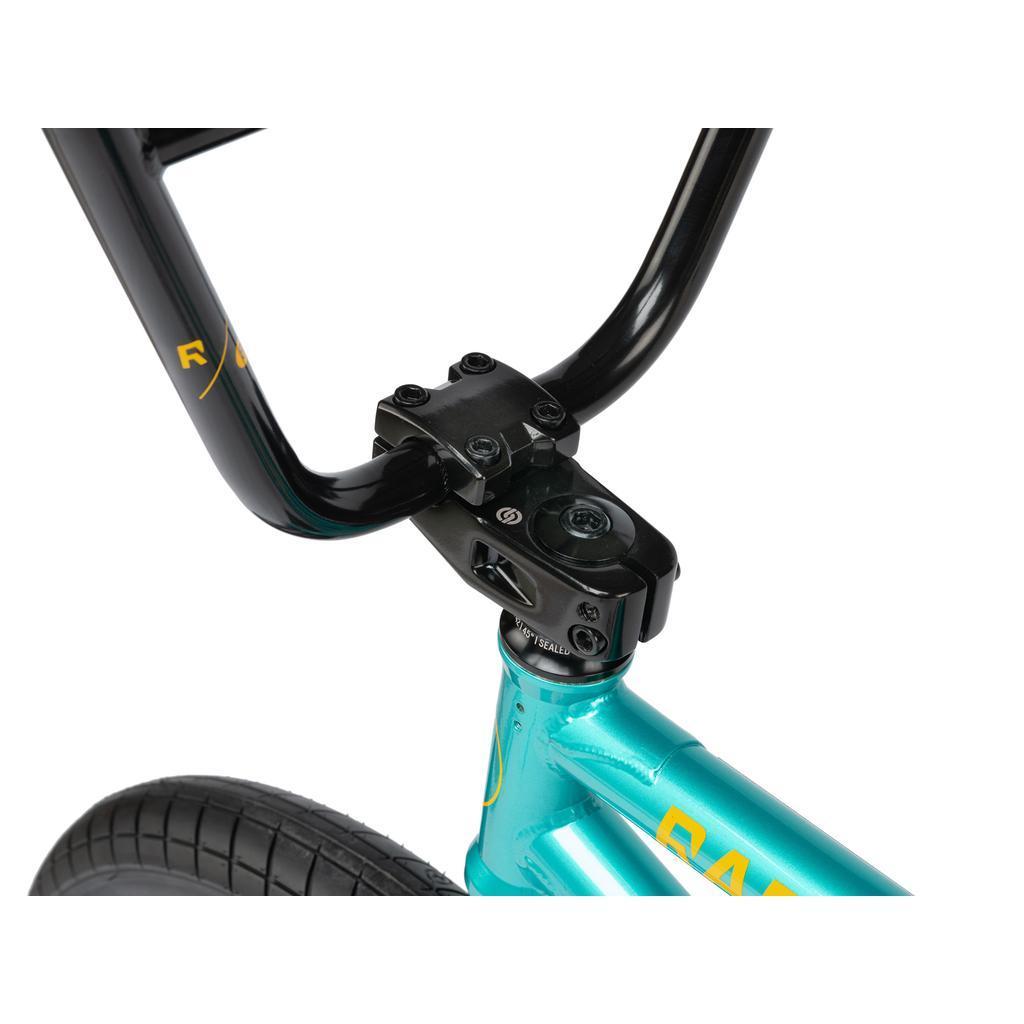

STEM - SALT "PRO" top load stem, 50mm reach
HEADSET - SALT "PRO" integrated headset, sealed bearing
GYRO - holes for removable gyro tabs
LEVER - RADIO "AM" brake lever, alloy, rear
BRAKES - RADIO "AM" u-brake, alloy, rear

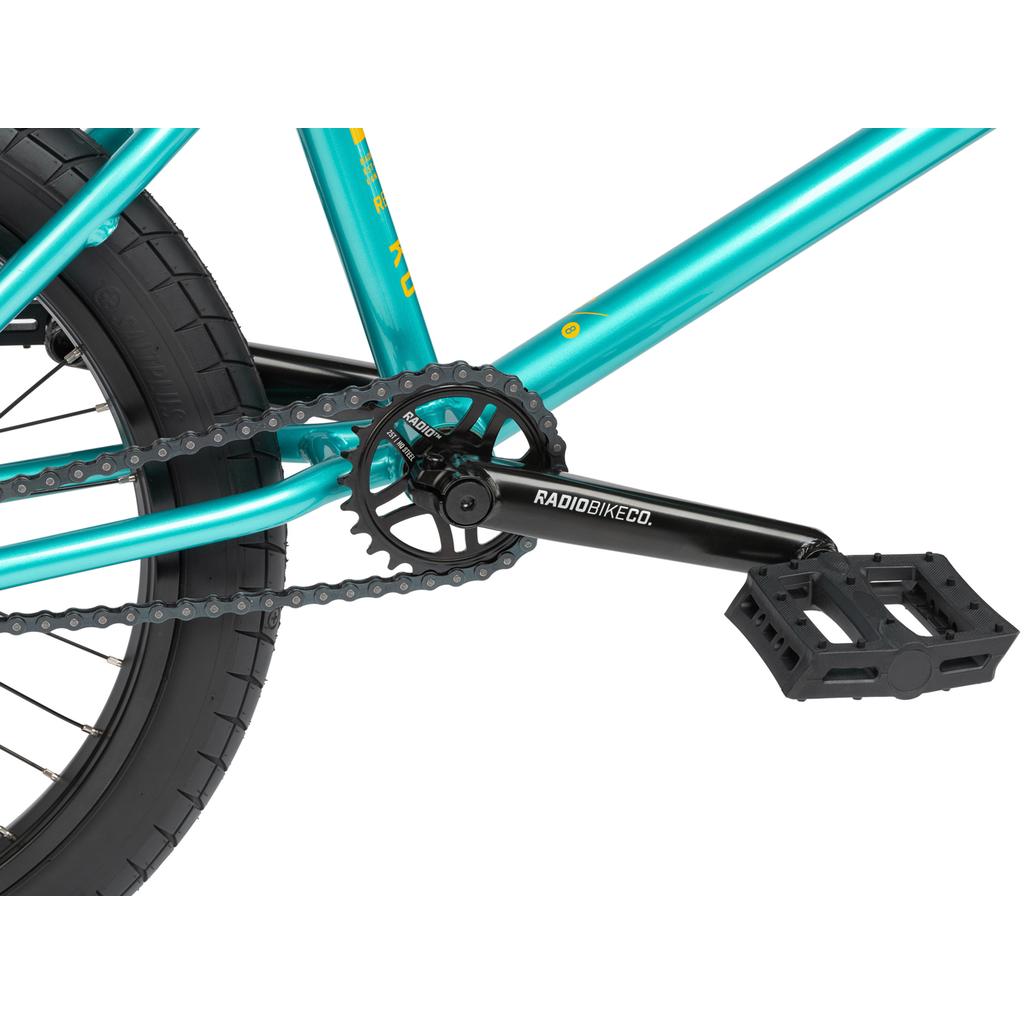

CRANKS - RADIO "AM" 3pc crank, tubular, crmo, 170mm, 8 spline
BB - RADIO "MID" bb set, press fit, sealed bearing

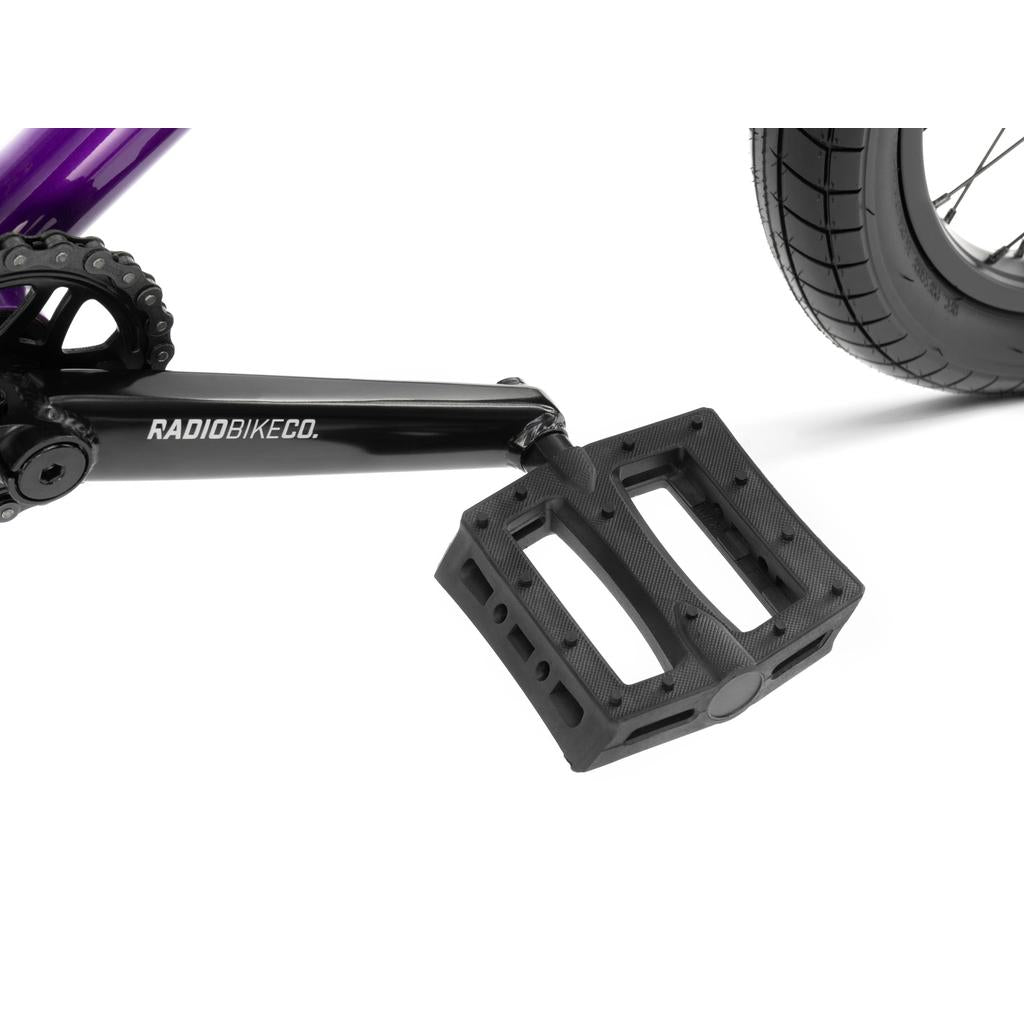

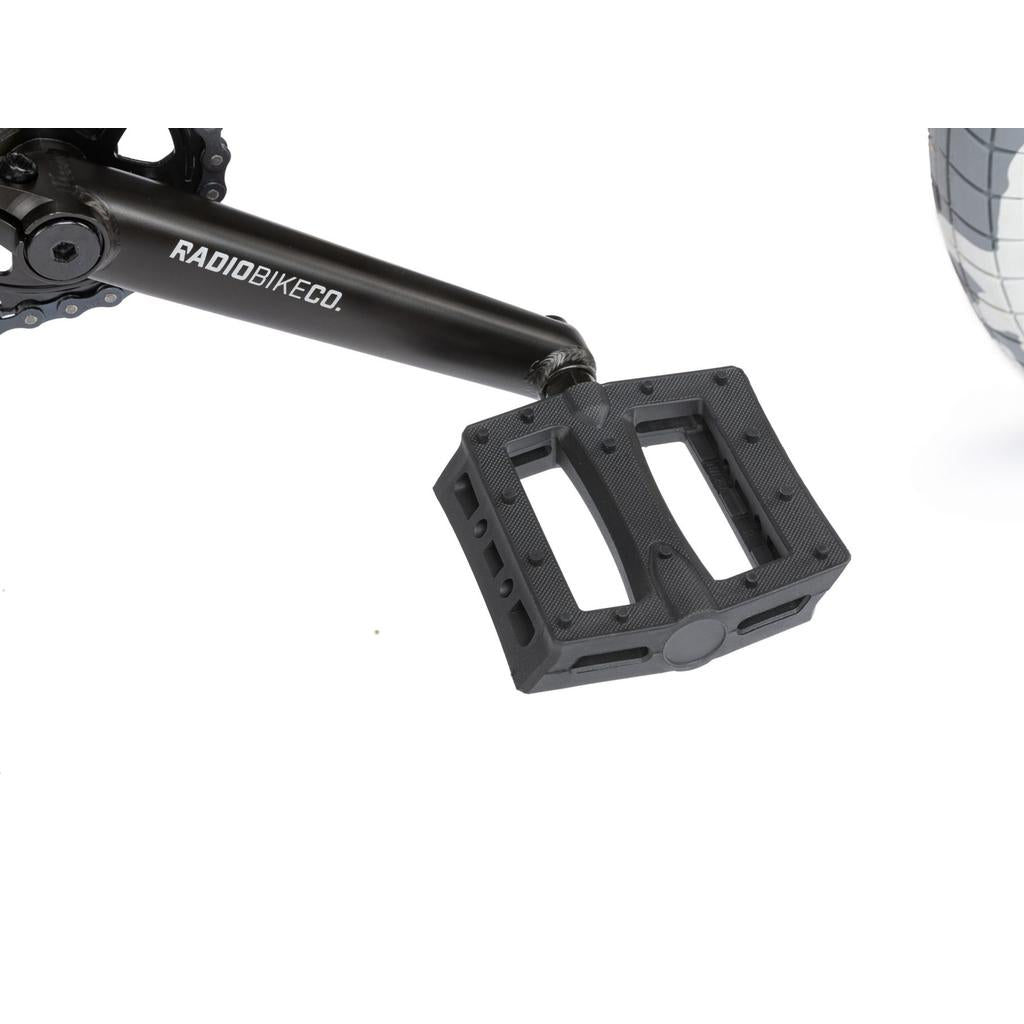

PEDALS - RADIO "PRO" pedals, nylon/fiberglass
CHAIN - SALT "AM" chain, WZ1 type

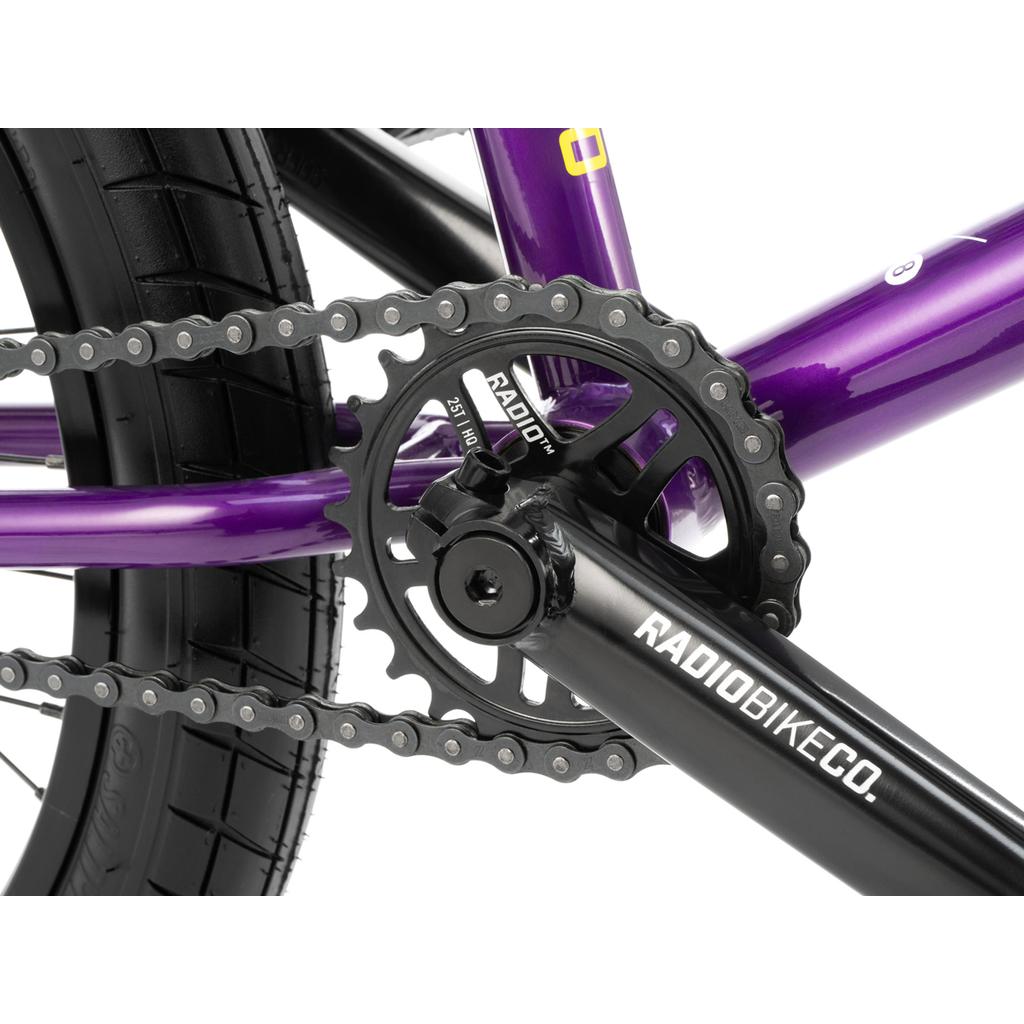

SPROCKET - RADIO "VISION" sprocket, steel, 25t
DRIVER - cassette driver, 9t, sealed bearing

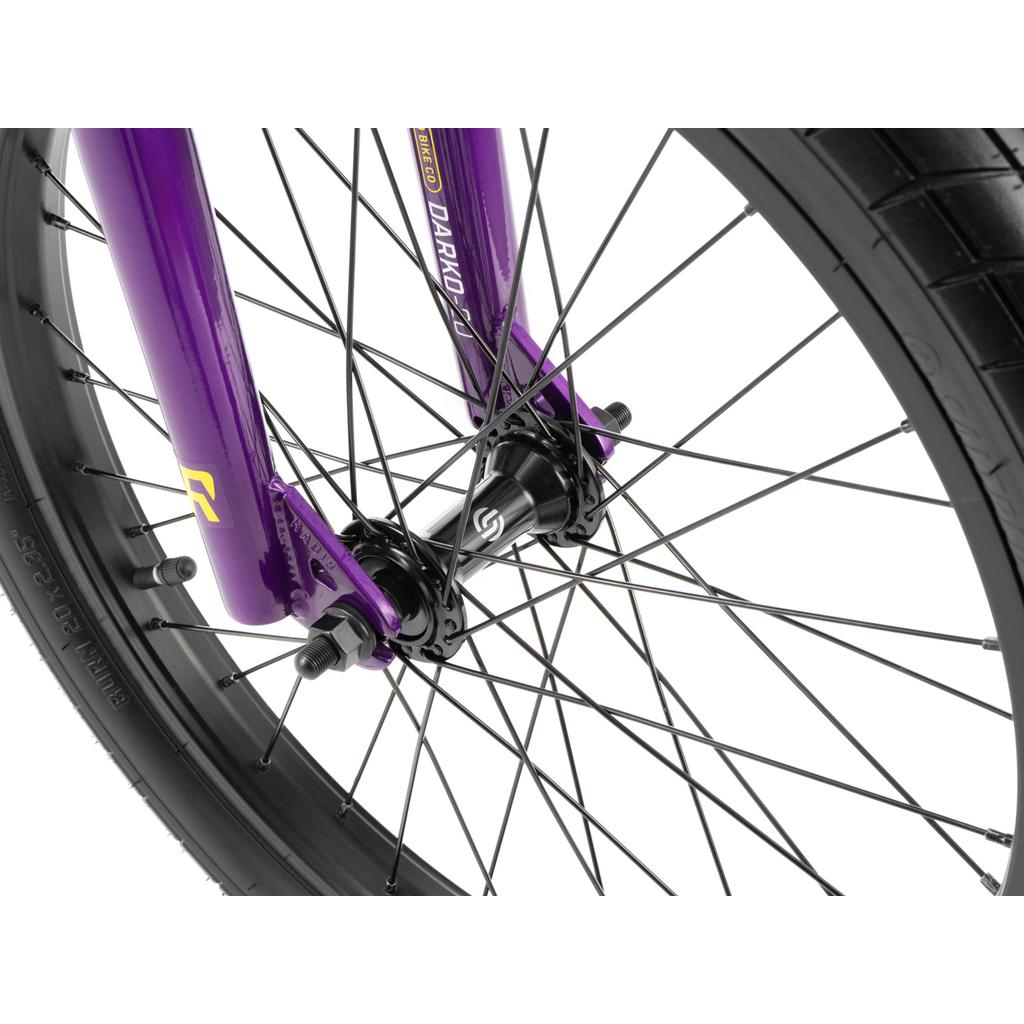

FRONT HUB - SALT "AM" hub, alloy, loose ball, 3/8"s male axle, 36h

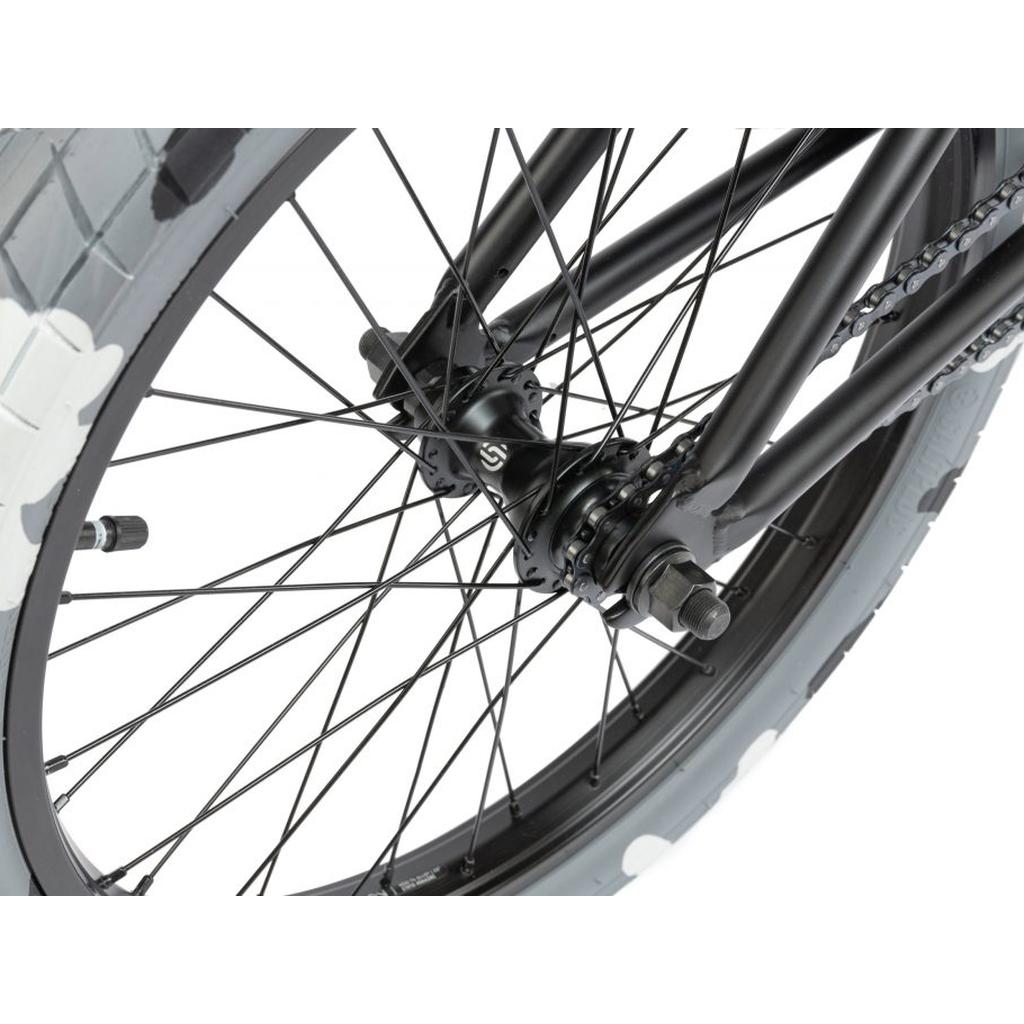

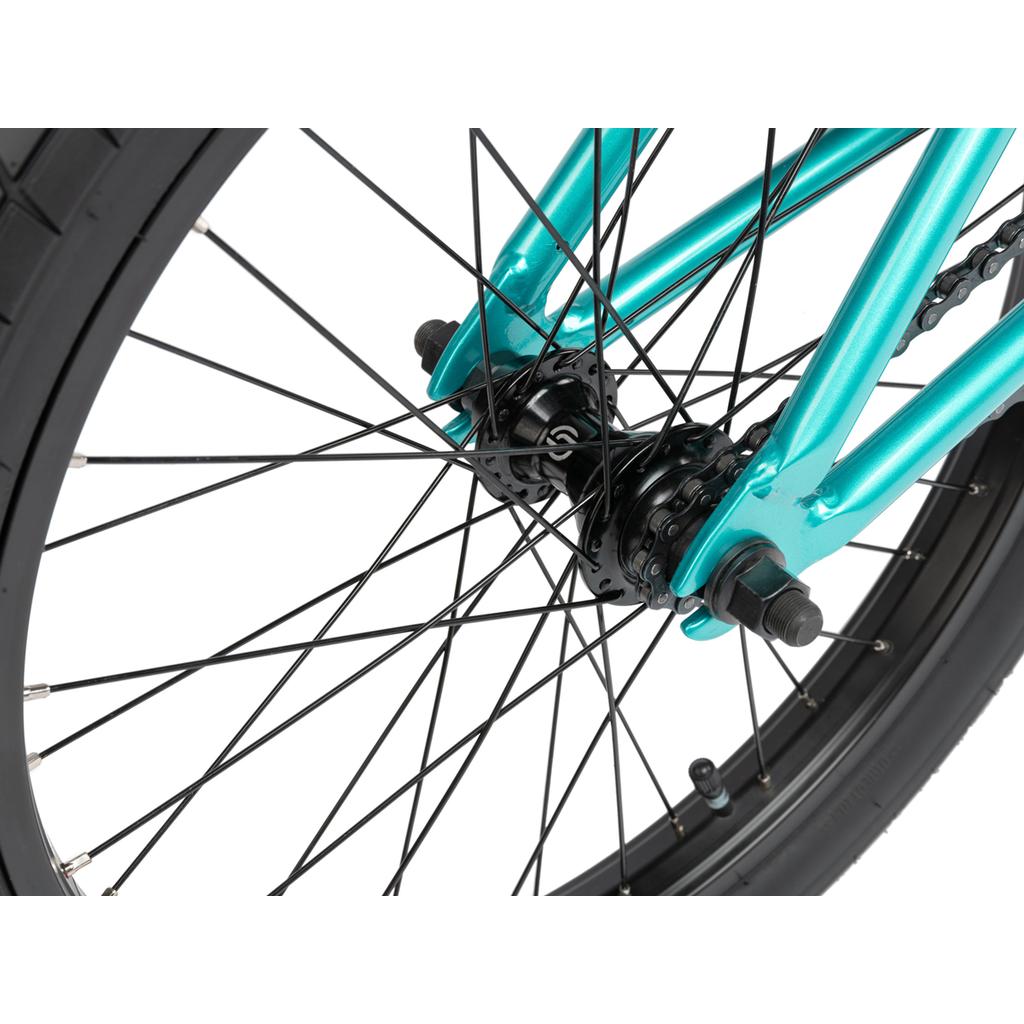

REAR HUB - RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
FRONT RIM - SALT "FRACTION" rim, single wall
REAR RIM - SALT "FRACTION" rim, single wall

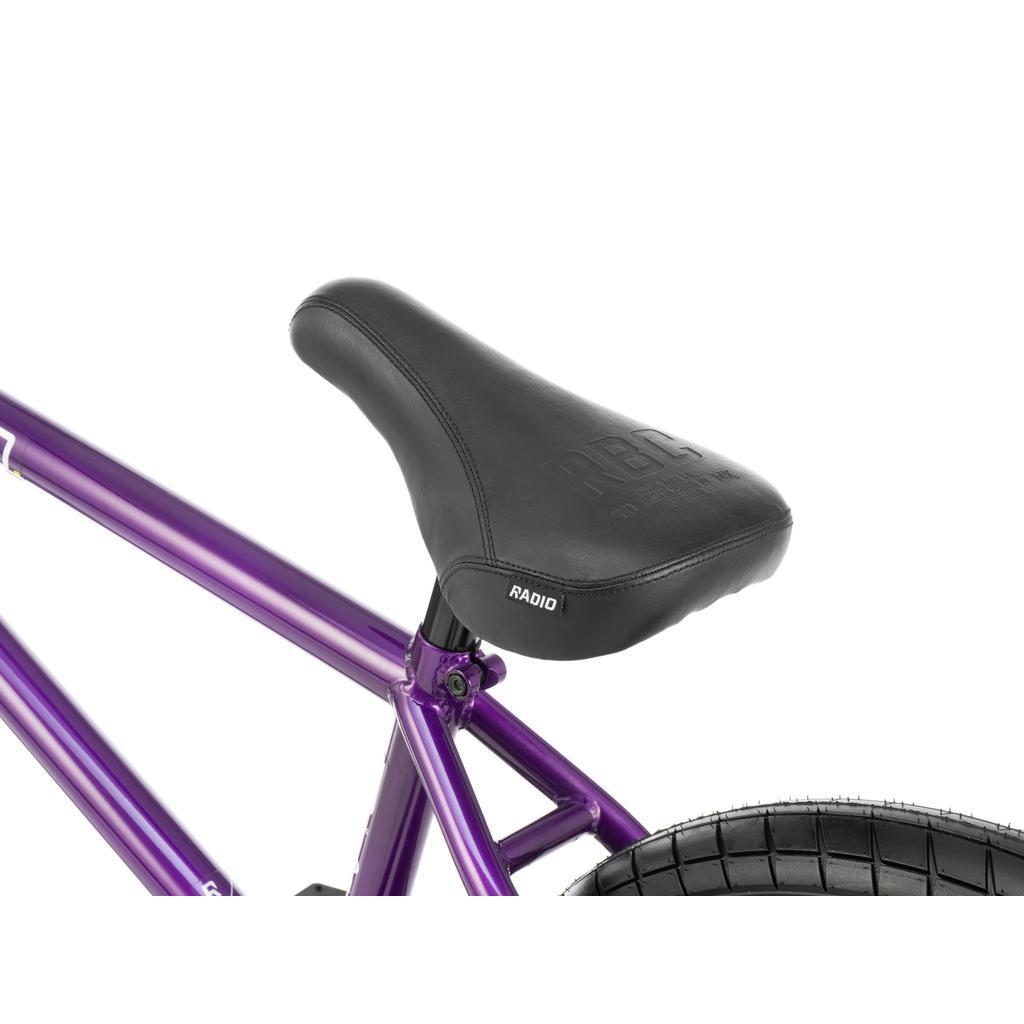

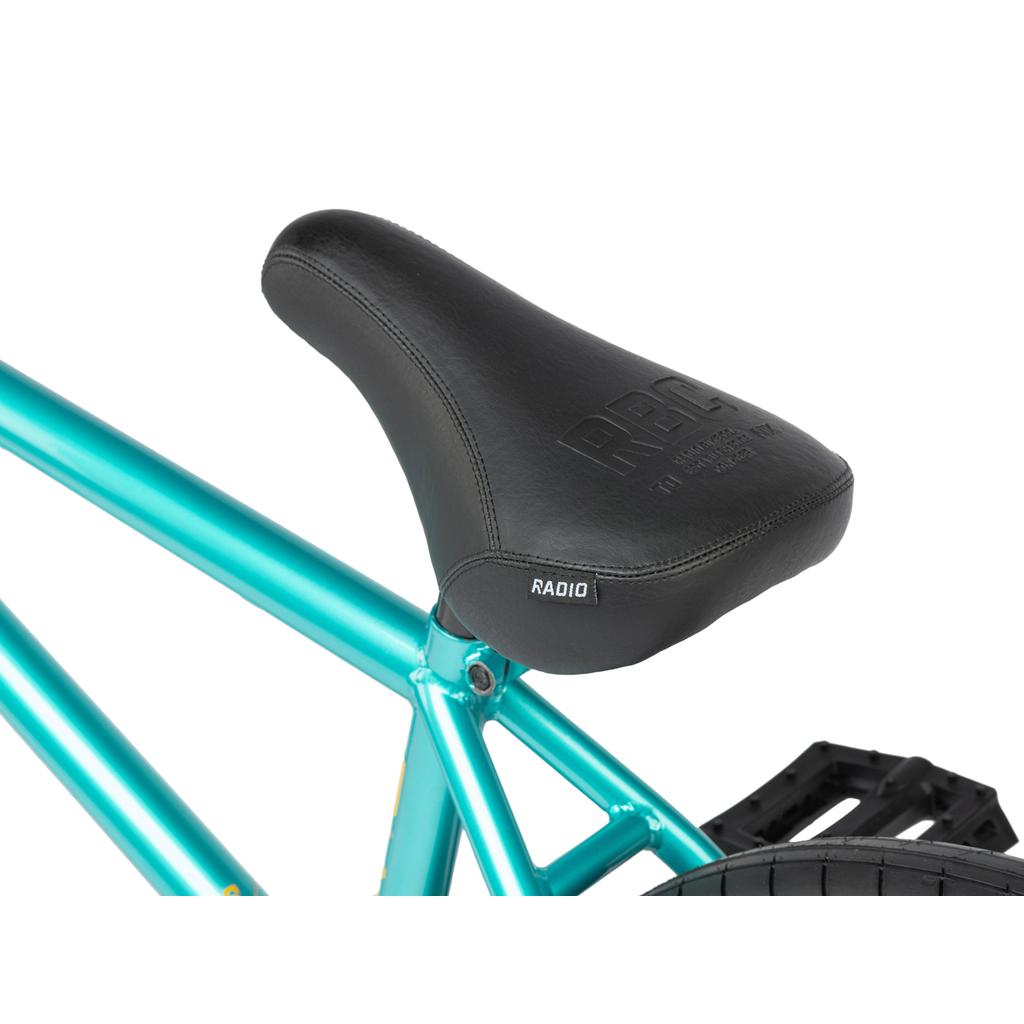

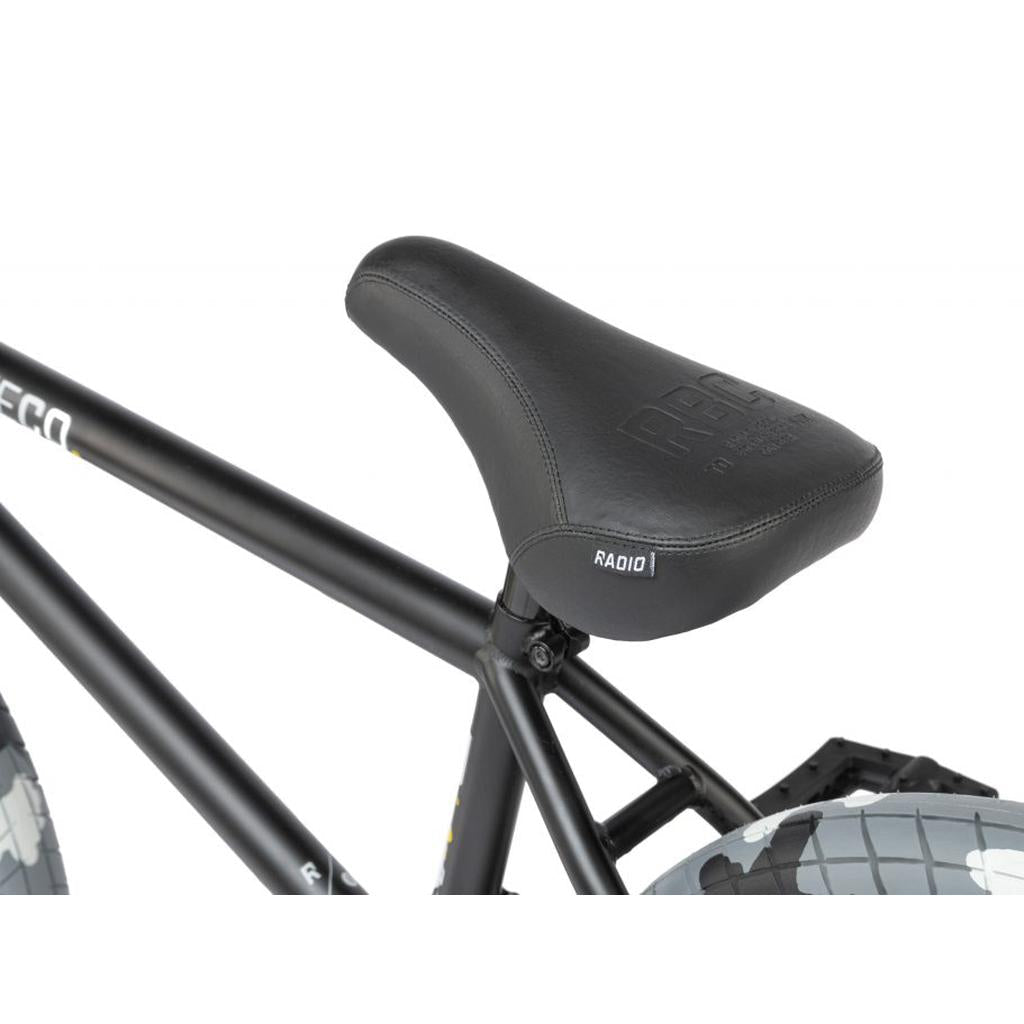

SEAT - RADIO "CENTURY" combo seat, fat padded
SEAT POST -
SEAT CLAMP - integrated seat clamp
TYRES - SALTPLUS "BURN" TYREs, 2.35", front & rear
WEIGHT - 11.59kg
FRAME/BAR GEOMETRY
TOP TUBE LENGTH - 20.5" & 21"
CHAIN STAY LENGTH - 13.2"
HEAD TUBE ANGLE - 75°
SEAT TUBE ANGLE - 71°
BOTTOM BRACKET HEIGHT - 11.7"
STANDOVER HEIGHT - 8.6"/8.9"
RISE - 9"
WIDTH - 29.5"
BACKSWEEP - 12°
UPSWEEP - 2°
